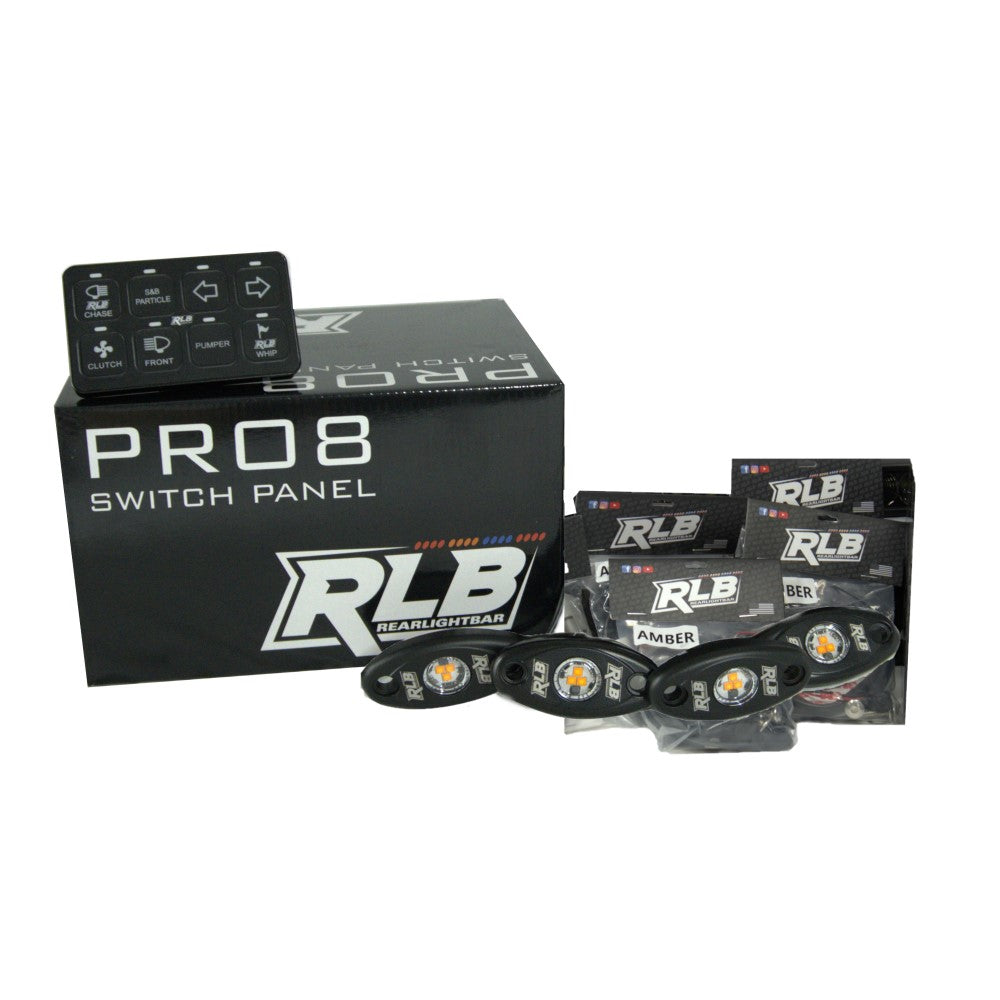

UTV Blinker Kit

ROCK LIGHT SPECS:
LED: CREE LED 50,000 hour life expectancy

LENS: Hard Coated Optic Poly-carbonate

HOUSING: Matte Black Die-cast Aluminum, UV-treated

IP DEGREE: IP68 Waterproof Housing

SIZE: Approx 2.8?(72mm)*1.6?(40mm)*0.5?(12mm)

2.5?(64mm) distance between mounting holes

MOUNTING: all hardware included for surface or tube mount

BEAM: 120-degree angle, flood

VOLTAGE: DC 9-32V

POWER: (3) 3 Watt LED = 9 Watt total

WEIGHT: 300 grams

OPERATING TEMPS: -20~50 degree Celsius
Power Module:

Size: Length 8.27?, Width 6.3?, Height 2.24?
Temp. Rating: Automotive -40c – 125c
Waterproof and Dust Rating: Ip66
Amp Rating: 100a Max
Each Switch Output: 30a Max
Low Voltage Cutoff
Ignition Control

Switch Panel:

Size: Length 4.57?, Width 2.72?, Height 0.47?
Housing: Anodized Aluminum
Switch Membrane and Sticker Legend: Polycarbonate
Temp. Rating: -30c – 85c
Waterproof and Dust Rating: 1p66
Backlight Colors: White, Blue, Green, Red
Switch Functions: on/off, Flash, Strobe, Momentary, Blinker
Mounting Options: Flush Mount, Panel Mount, Ram Tube Mount, Ram Surface Mount

Switches Can Be Programmed for:

Blinker
On/off or Momentary
Flash or Strobe, With User-selectable Strobe Patterns and One-touch Activation
Memory Function
Master Memory on/off Function
Waterproof Polycarbonate Overlay Faceplate

All Systems Include:

Sticker Legend
Eight User-selectable Programmable Switches
Eight 30a Circuits
Waterproof Power Module
100% Serviceable, the Universal Relays and Fuses  Are Replaceable; Not Solid State
4 Backlight Color Options; White, Blue, Green, and Red
Two Installation Options: Direct to Battery or Ignition Activated
4 Mounting Options: Flush Mount, Panel Mount, Ram Tube Mount, Ram Surface Mount
Low Voltage Cut-off Protection
Overvoltage Protection
Completely Serviceable Fuse/relay Power Module
