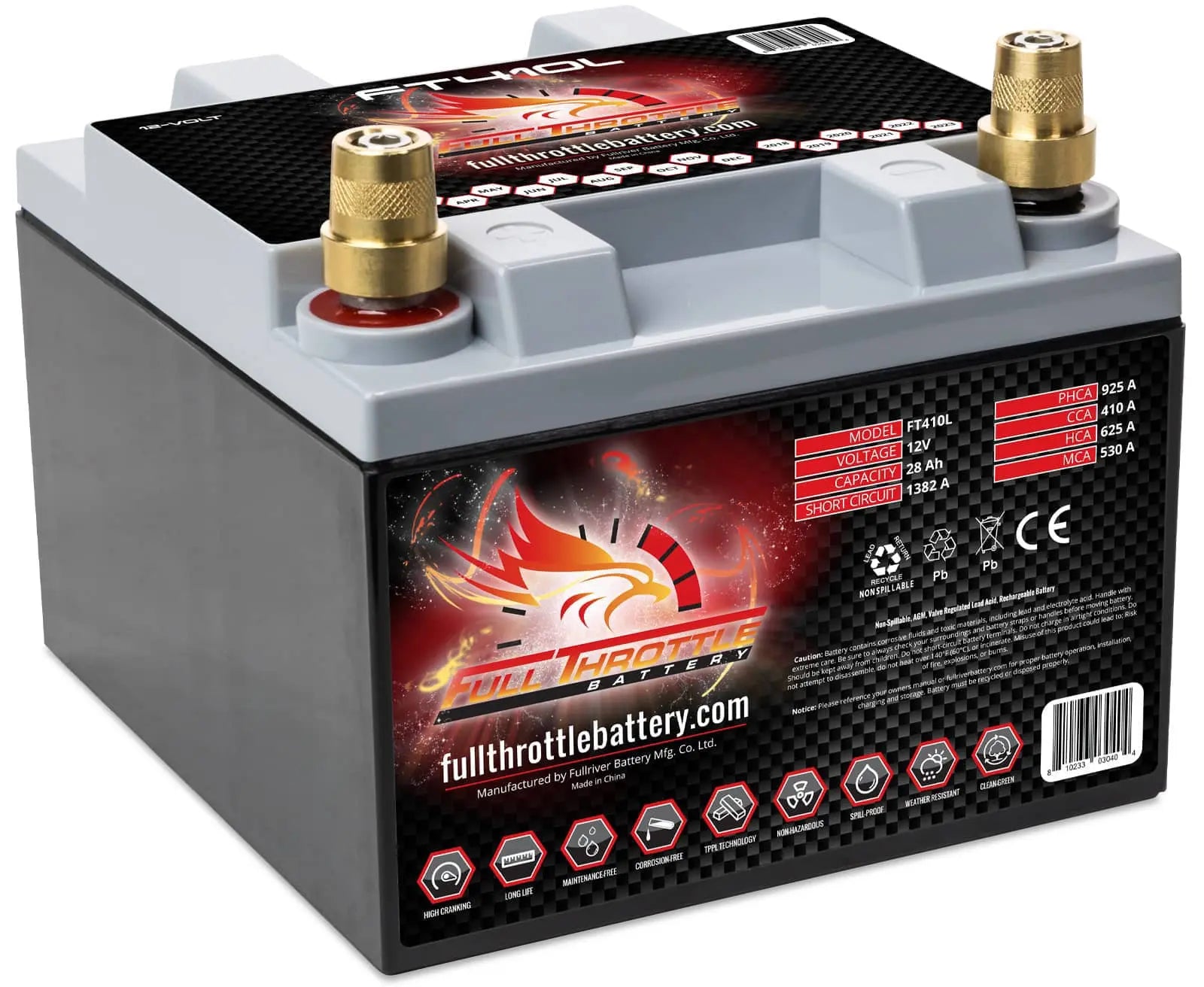

FT410L
DISCHARGE TABLE (Constant Current) Time Amps 20hr 0.05 CA 10hr 0.10 CA 8hr 0.13 CA 5hr 0.20 CA 3hr 0.33 CA 2hr 0.50 CA 1hr 1.00 CA 4.6 A 2.5 A 1.4 A 1.4 2.5 3.0 4.6 7.0 9.4 16.8 Rate DISCHARGE PROFILE (Constant Current) 12-Volt Battery Temperature: 77°F (25°C) 70.0 A 22.0 A 16.8 A - All listed ratings are @ 100% SoC, T=77°F (25°C), 1.75VPC unless otherwise specified. BATTERY & TERMINAL DIMENSIONS (All units shown in mm) 165 176 Terminal: M6 + TP26 19.0 17.5
M6 M6 133 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22
25.5 29.5
22
25.5 29.5
125
144
fullriverbattery.com
FULL THROTTLE SERIES | HIGH CRANKING AGM
TEMPERATURE vs CAPACITY
110% 100% 90% 80% 70% 60% 50% 40% 30% 20% 10%
0%
-40 -20 0 20 40 60 (-40) (-4) (32) (68) (104) (140)
TEMPERATURE °C (°F)
STATE of CHARGE (SOC) vs OPEN CIRCUIT VOLTAGE (OCV)
13.00 26.00
12.75 25.50
12.50 25.00
12.25 24.50
12.00 24.00
11.75 23.50
11.50 23.00 10 20 30 40 50 60 70 80 90 100
State of Charge (SOC)
CYCLE LIFE vs DEPTH of DISCHARGE (DOD) *(Based on BCI Testing @ 2-hr Rate)
SELF DISCHARGE vs TIME/TEMPERATURE
100% 90% 80% 70% 60% 50% 40% 30% 20% 10% 0%
100% 90% 80% 70% 60% 50% 40% 30% 20% 10% 0%
Storage Operation Charge with TC Charge w/o TC
1000 1500 2000 2500 3000 LIFE CYCLES (per BCI)
104°F (40°C)
86°F (30°C)
77°F (25°C)
0 2 4 6 8 10 12 14 16 18 20 22 24 STORAGE PERIOD (MONTHS) Note: “Boost Charge” required @ 75% SoC, Max 50% Soc
0 500
TEMPERATURE RANGE SPECIFICATIONS
Condition
Recommended
5°F to 122°F
5°F to 104°F
5°F to 122°F
32°F to 104°F
Maximum
-40°F to 160°F
-40°F to 160°F
-40°F to 160°F
5°F to 122°F
Recommended
-15°C to 50°C
-15°C to 40°C
-15°C to 50°C
0°C to 40°C
Maximum
-40°C to 71°C -40°C to 71°C -40°C to 71°C -15°C to 50°C
Bulk Absorption Float
57.6 - 58.8V 57.6 - 58.8V 54.6V
CHARGE VOLTAGES
Charge Stage
12V
14.4 - 14.7V
14.4 - 14.7V
13.6V
Battery Voltages
24V
28.8 - 29.4V
28.8 - 29.4V
27.2V
36V
43.4 - 44.1V
43.4 - 44.1V
40.8V
48V
*TC= Temperature Compensation
TC Factor: (-2mV°F/cell) or (-4mV°C/cell)
|
TERMINAL TORQUE SPECS (applicable values are highlighted) |
|||||||||
|
M6 |
M8 |
M10 |
M6M (Stud) |
M8M (Stud) |
M10M(Stud) & 3/8” Stud |
FR45 |
TP06 (AP) |
TP08/TP68 (AP) |
AP |
|
3.3-4.8ft-lbs |
5.2-6.7ft-lbs |
8.1-10.3ft-lbs |
2.6-3.7ft-lbs |
4.4-5.9ft-lbs |
7.4-8.8ft-lbs |
4.8-6.3ft-lbs |
2.6-3.3ft-lbs |
4.6-6.3ft-lbs |
4.2-5.8ft-lbs |
|
40-57.5lbs-in |
62-80lbs-in |
97-124lbs-in |
31-44lbs-in |
53-71lbs-in |
88.5-106lbs-in |
57-75lbs-in |
31-40lbs-in |
55-75lbs-in |
50-70lbs-in |
|
4.5-6.5Nm |
7-9Nm |
11-14Nm |
3.5-5Nm |
6-8Nm |
10-12Nm |
6.5-8.5Nm |
3.5-4.5Nm |
6.2-8.5Nm |
5.6-7.9Nm |
9001:2008 14001:2004 18001:2007
Quality Management System
Environmental Management System
Occupational Health & Safety Management System
CERTIFIED
Fullriver batteries are sealed lead acid batteries made with Absorbed Glass Mat (AGM) technology. The electrolyte is absorbed
DELIVERY APPROVED!
LAND, SEA into the fiberglass separator material rather than in a free-flowing liquid form. Fullriver batteries are non-spillable electric
& AIR storage batteries. They are excepted from the requirements of DOT’s hazardous materials regulations, since they adhere to the requirements of code 49 CFR Section 173.159(D) - (CLASSIFIED APPROVED: DOT, CFR, HMR49, IATA, ICAO67, IMDG27)
